Tesla Gen 3 Wall Connector
Supply & Installation across the Fraser Coast
A sleek, reliable home charger that just works
The Tesla Gen 3 Wall Connector is a compact, Wi-Fi–connected AC charger designed for fast, convenient home charging. It supports single-phase and three-phase installs (up to 32 A), includes built-in safety protection, and can “power-share” with up to six units on one circuit—ideal for multi-EV households or strata carparks.
Quick highlights
Type 2 plug (the Australian standard) — suits Tesla and most other modern EVs with a Type 2/CCS2 inlet.
Adjustable up to 32 A output (we will set the output to suit your supply), single or three phase.
Built-in safety: integrated 6 mA DC leakage detection, so no external Type B device is required.
Wi-Fi + app commissioning, over-the-air firmware updates, access controls, and usage tracking in the Tesla app.
Power-sharing across multiple Wall Connectors to stay within a site current limit.
Why it’s a great value choice
Lower total cost than many “smart” third-party chargers with similar features (load sharing, Wi-Fi, OTA updates). Tesla also offers a 4-year residential warranty in Australia, adding confidence for homeowners.

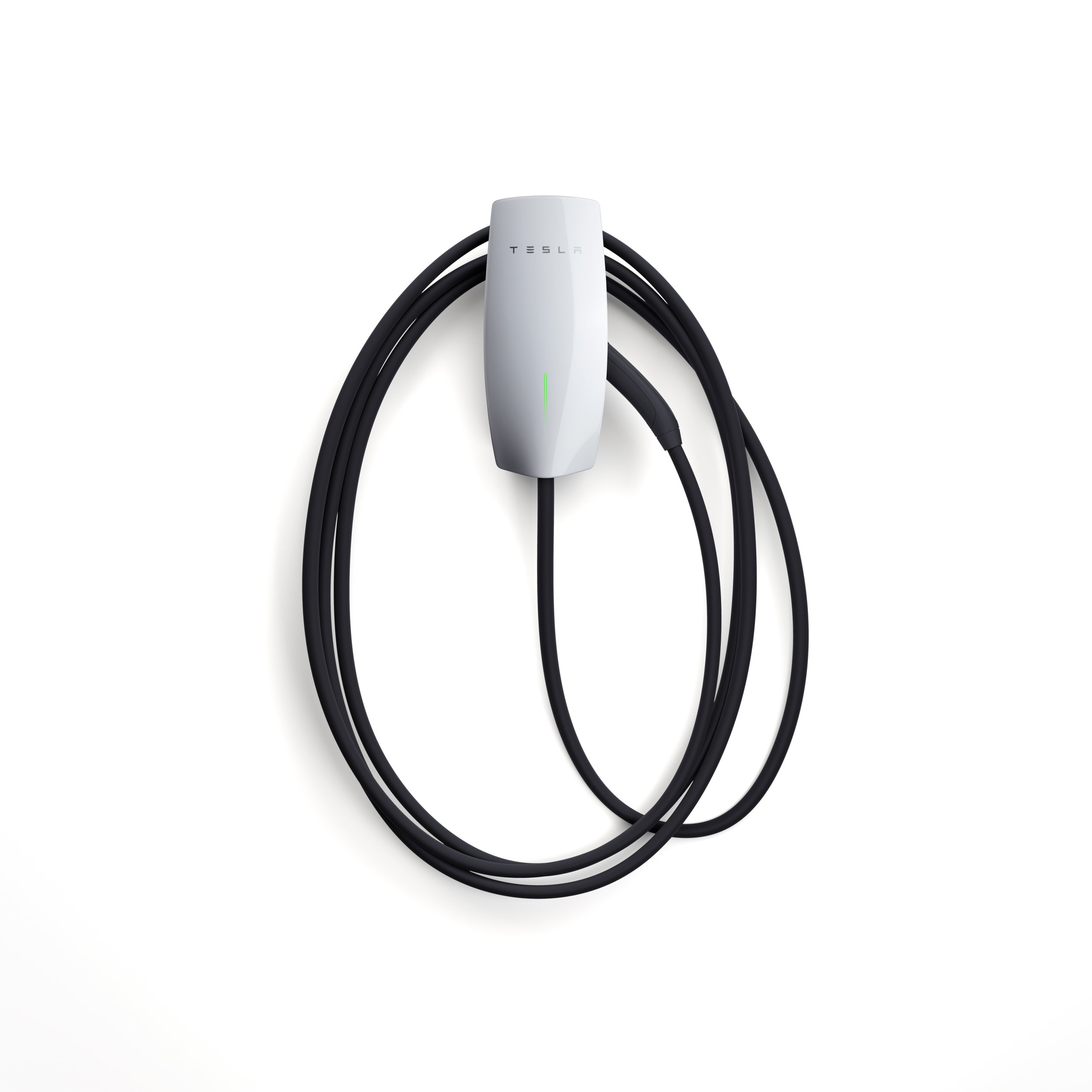

Neat install: slim enclosure, 7.3 m tethered cable, tidy cable dock. Indoor/outdoor rated.
Future-friendly: software-based commissioning and updates extend functionality over time.
Tip for Queensland homes: Pairing the charger with an off-peak tariff/schedule can materially reduce charging costs without extra hardware. (We’ll configure scheduling with you during commissioning.)
Things to consider
(especially if you don’t own a Tesla or a Powerwall)
1) Compatibility & experience with non-Tesla EVs
It can charge non-Tesla EVs (Type 2), provided the Gen 3 is set to “charge all EVs” during commissioning. Earlier Tesla wall connectors had mixed behaviour, but Gen 3 supports a non-Tesla mode.
App features differ for non-Tesla cars. You’ll still have access control, scheduling and usage, but Tesla-specific niceties (like auto-open charge port) won’t apply to other brands.
2) Solar optimisation
Gen 3 Wall Connector does not natively “solar-match/divert” on its own. For deep solar integration (charging only from excess PV, dynamic tracking), Tesla’s ecosystem needs Powerwall integration; otherwise consider a third-party solar-aware charger if solar-only charging is a must-have.
3) Electrical & compliance details
Built-in RCD Type A + 6 mA DC detection satisfies the EVSE DC leakage requirement in AS/NZS 3000 contexts (so no separate Type B RCD is typically needed). We’ll design the circuit for your switchboard capacity and tariff.
4) Multi-EV households / apartments
Need to charge two or more EVs? We can power-share multiple Wall Connectors under a single supply limit to avoid expensive switchboard upgrades.
Who the Tesla Wall Connector suits best
Tesla owners wanting the most seamless experience at home.
Non-Tesla owners who want a tidy, reliable charger and are comfortable using the car’s own scheduling/app for some features.
Homes and small sites that value clean aesthetics, load-sharing, and a proven ecosystem.
If you want advanced solar-only charging without Powerwall, we’ll run you through alternatives (e.g., solar-aware third-party units) and explain trade-offs.
Our standard installation
(what’s included)
Site check, design, and compliance review.
Dedicated circuit (single or three phase) with appropriately rated protection.
Local isolation/safety labelling to AS/NZS 3000 and Queensland practice.
Wall mounting, neat cable management, and waterproofing as required.
Wi-Fi commissioning, app setup, and user walkthrough.
Electrical test results and Certificate of Testing & Compliance (QLD).
Frequently asked questions
Will it work with my non-Tesla EV?
Yes—Gen 3 can be configured to charge all EVs with a Type 2/CCS2 inlet. We set that during commissioning. Some models show a short handshake before charging begins.
What charging speed will I get?
That depends on your supply (single vs three phase) and the current we set. The unit supports up to 32 A. Tesla quotes up to ~71 km per hour of charge under ideal conditions. We’ll right-size it to your switchboard capacity.
Do I need a Type B RCD?
No—the Wall Connector includes RCD Type A + 6 mA DC detection internally. We still design and test the circuit to meet the Wiring Rules.
Can I charge only from my excess solar?
Not natively. True solar-matching/divert requires either a Powerwall-based setup in the Tesla ecosystem, or choosing a third-party charger designed for PV divert. We’ll talk you through both routes.
Can I add more Wall Connectors later?
Yes—power-sharing lets you run up to six Gen 3 units on a shared limit, which is perfect for multi-EV homes or shared parking.
Ready to install?
Blackfin Power Systems are EVSE specialists based in the Fraser Coast. We’ll design, supply, install and commission your Tesla Wall Connector to Queensland standards, and we’re happy to advise on tariffs, switchboard capacity, and solar considerations.
